Stainless Steel Coiled Tubing
OD: 0.5-25mm
WT: 0.1-2.5mm
Material: 304, 304L, 316, 316L, 317L, 321, 904L etc
Surface: Bright anneal
State: Soft
Packing: Wooden box or wooden pallet with wooden spool
Product introduction
Stainless steel coiled tubing are usually bending tube with diameters of 1 mm to 20 mm and thickness of 0.1 mm to 2.5 mm.
Stainless steel coiled tube features:
High temperature steam resistance, impact corrosion resistance, ammonia corrosion resistance; anti-scaling, not easy to stain, anti-oxidation corrosion; long service life, reduce maintenance time, save costs; good piping technology, can be directly changed, safe and reliable; uniform pipe wall, overall thermal conductivity is better than copper pipe; is the old unit transformation and manufacturing new equipment. The ideal heat exchange product. It can be widely used in petrochemical, electric power, nuclear industry, medicine, food and other industries.
Stainless steel coiled tubing can be classified as:
Stainless steel coiled tubing for industrial use: heat exchangers, boilers, petroleum, chemical, fertilizer, chemical fibers, pharmaceuticals, nuclear power, etc.
Stainless steel coiled tubing for fluid: beverage, beer, milk, water supply system, medical equipment, etc.
Stainless steel coiled tubing for mechanical structure: printing and dyeing, printing, textile machinery, medical equipment, kitchen equipment, automobile and ship accessories, construction and decoration, etc.
Normal size of stainless steel coiled tubing in Chanson Metals:
3/8 "OD * 0.049" WT * L 1-2000m
1/8 "OD * 0.035" WT * L 1-3500m
1/4 "OD * 0.035" ~0.049"WT * L 1 ~ 1800m
1/2 "OD * 0.049" WT * L 1-1000m
3mmOD * 0.9mm WT * L 1~3500m
4mmOD * 0.9mm WT * L 1~2500m
6mmOD * 0.9mm WT * L 1~1700m
8mmOD * 1mm WT * L 1-1000m
10mmOD * 1mm WT * L 1 ~ 8000m
10-26mmOD * 1-2mm WT * L 1-800m
Chanson Metals also accept customised sizes.
Chemical composition:
Stainless steel coiled tube features:
High temperature steam resistance, impact corrosion resistance, ammonia corrosion resistance; anti-scaling, not easy to stain, anti-oxidation corrosion; long service life, reduce maintenance time, save costs; good piping technology, can be directly changed, safe and reliable; uniform pipe wall, overall thermal conductivity is better than copper pipe; is the old unit transformation and manufacturing new equipment. The ideal heat exchange product. It can be widely used in petrochemical, electric power, nuclear industry, medicine, food and other industries.
Stainless steel coiled tubing can be classified as:
Stainless steel coiled tubing for industrial use: heat exchangers, boilers, petroleum, chemical, fertilizer, chemical fibers, pharmaceuticals, nuclear power, etc.
Stainless steel coiled tubing for fluid: beverage, beer, milk, water supply system, medical equipment, etc.
Stainless steel coiled tubing for mechanical structure: printing and dyeing, printing, textile machinery, medical equipment, kitchen equipment, automobile and ship accessories, construction and decoration, etc.
Normal size of stainless steel coiled tubing in Chanson Metals:
3/8 "OD * 0.049" WT * L 1-2000m
1/8 "OD * 0.035" WT * L 1-3500m
1/4 "OD * 0.035" ~0.049"WT * L 1 ~ 1800m
1/2 "OD * 0.049" WT * L 1-1000m
3mmOD * 0.9mm WT * L 1~3500m
4mmOD * 0.9mm WT * L 1~2500m
6mmOD * 0.9mm WT * L 1~1700m
8mmOD * 1mm WT * L 1-1000m
10mmOD * 1mm WT * L 1 ~ 8000m
10-26mmOD * 1-2mm WT * L 1-800m
Chanson Metals also accept customised sizes.
| HS Code | 7304419000/7306400000 | |||||
| Standard | ASTM,JIS, BS, EN, DIN, GB etc | |||||
| Marking | Grade+Type+Standard+Size+Heat NO or as required | |||||
| Price Term | EX-Work, FOB, CFR, CIF,CNF | |||||
| OEM | Accepted | |||||
| Payment term | T/T,L/C, Western union | |||||
| Certificate | ISO 9001, PED | |||||
| Third party inspection | Accepted | |||||
| Grade | UNS | Chemical Component % | ||||||||||
| C | Mn | P | S | Si | Ni | Cr | Mo | N | Ti | Other | ||
| TP304 | S30400 | 0.08 | 2.00 | 0.045 | 0.03 | 1.00 | 8.0-11.0 | 18.0-20.0 | - | - | - | - |
| TP304L | S30403 | 0.035 | 2.00 | 0.045 | 0.03 | 1.00 | 8.0-13.0 | 18.0-20.0 | - | - | - | - |
| TP304H | S30409 | 0.04~0.10 | 2.00 | 0.045 | 0.03 | 1.00 | 8.0-11.0 | 18.0-20.0 | - | - | - | - |
| TP310S | S31008 | 0.08 | 2.00 | 0.045 | 0.03 | 1.00 | 19.0-22.0 | 24.0-26.0 | 0.75 | - | - | - |
| TP310H | S31009 | 0.04~0.10 | 2.00 | 0.045 | 0.03 | 1.00 | 19.0-22.0 | 24.0-26.0 | - | - | - | - |
| TP316 | S31600 | 0.08 | 2.00 | 0.045 | 0.03 | 1.00 | 11.0-14.0 | 16.0-18.0 | 2.0-3.0 | - | - | - |
| TP316L | S31603 | 0.035 | 2.00 | 0.045 | 0.03 | 1.00 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 | - | - | - |
| TP316H | S31609 | 0.04~0.10 | 2.00 | 0.045 | 0.03 | 1.00 | 11.0-14.0 | 16.0-18.0 | 2.0-3.0 | - | - | - |
| TP317 | S31700 | 0.08 | 2.00 | 0.045 | 0.03 | 1.00 | 11.0-14.0 | 18.0-20.0 | 3.0-4.0 | - | - | - |
| TP317L | S31703 | 0.035 | 2.00 | 0.045 | 0.03 | 1.00 | 11.0-15.0 | 18.0-20.0 | 3.0-4.0 | - | - | - |
| TP321 | S32100 | 0.08 | 2.00 | 0.045 | 0.03 | 1.00 | 9.0-12.0 | 17.0-19.0 | - | 0.1 | Ti5(C+N)~0.7 | - |
| TP321H | S32109 | 0.04~0.10 | 2.00 | 0.045 | 0.03 | 1.00 | 9.0-12.0 | 17.0-19.0 | - | - | Ti4(C+N)~0.6 | - |
| 904L | S08904 | 0.02 | 2.00 | 0.045 | 0.035 | 1.00 | 19.0-23.0 | 23.0-28.0 | 4.0-5.0 | 0.10 | - | 1.0-2.0 |

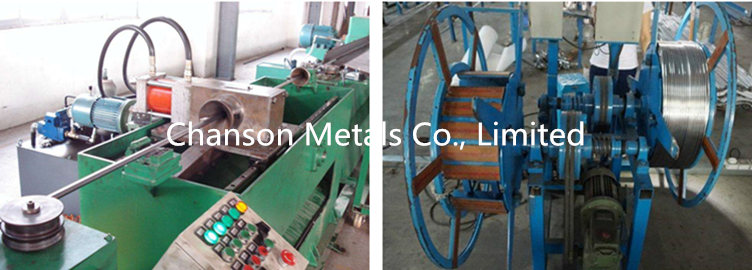

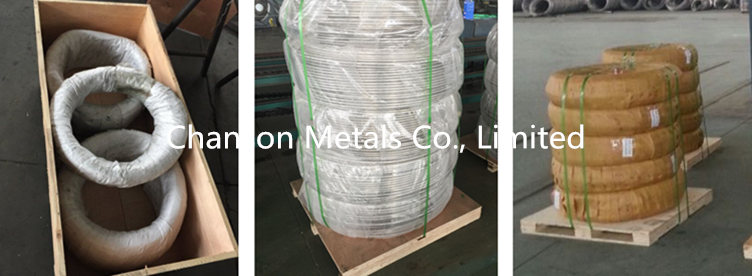

Packing and equipments:
